Wednesday, March 05, 2014

Stochastic Gradient Methods 2014

Last week I attended Stochastic Gradient Methods workshop held at UCLA's IPAM . Surprisingly, there's still quite a bit of activity and unsolved questions around what is essentially, minimizing a quadratic function.

In 2009 Strohmer and Vershinin rediscovered an algorithm used for solving linear systems of equations from 1970 -- Kaczmarz method, and showed that this algorithm is a form of Stochastic Gradient. This view of SGD motivates a biased sampling strategy which gives faster convergence rate than regular Stochastic Gradient. This spurred a flurry of activity, motivating results in at least 5 different lectures.

In 2010, Nesterov showed that Randomized Coordinate Descent has a faster convergence rate than SGD, and in 2013 Singer showed a way to accelerate it to quadratic convergence. In 2013 Richtarik gave an alternative algorithm to get the same convergence rate, but also comes up with better step sizes that rely on sparsity pattern of the problem.

Summaries of talks I attended with links to slides are below:

Ben Recht

Gave an overview of Hogwild and Jellyfish methods. Hogwild has been covered a few times before at NIPS, but here's an overview slide



Jellyfish (described in their Large Scale Matrix completion paper) chooses sampling order in a way to minimize lock contention.

Also talked about their work on explaining the gap between performance of SGD sampling with replacement vs. without replacement. Empirically, without replacement works better (see Section 5 of "Beneath the valley" paper) yet until recently tools were missing to explain it. They are able to prove faster rates of no-replacement sampling for Kaczmarz algorithm by relying on "Noncommutative arithmetic-geometric mean inequality."

Resources:


  • Slides Recht - we should all run hogwild!.pdf
  • Beneath the valley of the noncommutative arithmetic-geometric mean inequality: conjectures, case-studies, and consequences. http://arxiv.org/abs/1202.4184
  • Parallel Stochastic Gradient Algorithms for Large-Scale Matrix Completion. Recht and Re. 2011.
  • HOGWILD!: A Lock-Free Approach to Parallelizing Stochastic Gradient Descent. Niu, Recht, Re, and Wright. 2011.

Yoram Singer

Talked about accelerating coordinate descent with momentum-like approach, dubbed Generalized Accelerated Gradient Descent. Nesterov's accelerated gradient method has quadratic convergence with linear dependence on condition number of the loss
$$O\left(\frac{L}{k^2}\right)$$

Parallel coordinate descent depends on average of per-coordinate Lipschitz constants, which can be much better for badly conditioned loss:
$$O\left(\frac{\bar{L_i}}{k}\right)$$

The methods proposed has quadratic convergence of accelerated gradient, meanwhile retaining dependence on average curvature, rather than the worst
$$O\left(\frac{\bar{L_i}}{k^2}\right)$$

Resources:



Dimitri Bertsekas

In-depth tutorial "Incremental Gradient, Subgradient, and Proximal Methods for Convex Optimization: A Unified Framework"

One slide that stuck out is the one-dimensional illustration of why SGD works.


In the farout region, all gradients are pointing in the same direction, so taking gradient step with respect to a single component function works just as well as looking at the full sum.

This also serves as the motivation for "heavy ball" method (Polyak, 1964). When you are in farout region, you want to accelerate, while in confusion region, you want to decelerate, you can accomplish this by modifying gradient update formula as follows

$$x_{x+1} = x_k-\alpha_k \nabla f_{i_k}(x_k)+\beta_k(x_k-x_{k-1})$$

This is similar in spirit to "Accelerated Stochastic Approximation" of Kesten (1958) which grows the step size if the difference between successive $x$'s is the same sign, and shrinks if there are many sign changes.

Schmidt said Stochastic Averaged Gradient works better than Kesten's approach in a multi-dimensional setting.

Resources:



Peter Richtarik


Gave overview of his "Accelerated, Parallel and Proximal Coordinate Descent". It gives a technical improvement over his previous work "Distributed coordinate descent method for learning with big data" (http://arxiv.org/abs/1310.2059) which seems to have the meat of the contributions.

Here's a slide from his talk comparing various methods.


"Prox" column means the algorithm can take proximal steps, i.e., can be used with constraints and not-nice regularizers. "Accel" or Accelerated is whether the method is enjoys $O(1/k^2)$ convergence rate where $k$ is the iteration counter. "General f" means it applies for convex problems rather than quadratic. "Block" is whether method can update some of the coordinates at a time rather than all coordinates.

Setting of the problem is summarized in slide below


You are optimizing a sum of losses $f_e$, and not all losses depend on all examples. You want to update your sets of coordinates in blocks, in parallel. Sets of variables involved for each $f_e$ determine how well you can parallelize the problem. In half-a-dozen papers on his website he develops framework dubbed Expected Separable Overapproximation (ESO) to analyze such problems.

One outcome of ESO approach is a formula that incorporates sparsity of the problem into calculation of step size. See Table 3 of his approx paper (http://arxiv.org/pdf/1312.5799v1.pdf)

$$v_i = \sum_{j=1}^m (1+\frac{(\omega_j-1)(\tau-1)}{\max(1,n-1)}A_{ji}^2$$

This is formula for step size for coordinate $i$ in randomized coordinate descent, computed as a sum over examples $j$. Quantity $\omega_j$, is the number of components of vector that example $x_j$ depends on, $n$ is dimensionality, and $\tau$ is the number of coordinates are updated in parallel. $A$ is the matrix of quadratic minimization problem, replaced with matrix of per-coordinate Lipschitz constant for general convex problems.

Resources:



Rachel Ward and Deanna Needell


Gave background on their paper "Stochastic Gradient Descent and the Randomized Kaczmarz Algorithm". The setting:



Further in presentation, developed importance sampling for SGD. Traditionally, SGD picks random component of the sum above, and the number of steps required to reach given accuracy is proportional to the worst condition number (Lipshitz constant) over per-example losses.

Derived following formula for the number of steps needed to reach given accuracy $\epsilon$ with uniform sampling

$$k \propto \log \epsilon (\sup_i \frac{L_i}{\mu} + \epsilon^{-1} \frac{\sigma^2}{\mu^2})$$

For quadratics, the first term is close to largest condition number out of all component functions $f_i$, except you are normalizing by global smallest eigenvalue $\mu$, rather than per-component smallest eigenvalue $\mu_i$. The second term is "normalized consistency" - expected squared norm of the squared gradient divided by smallest eigenvalue squared.

Instead of uniform sampling, we can sample examples in linear proportion to Lipshitz constant for gradient of loss on that example. This cuts down the number of steps needed to average Lipschitz constant, normalized by strong convexity parameter $mu$, rather than largest Lipschitz constant. Since Lipschitz constant is the upper bound on the largest eigenvalue of the Hessian, this means number of steps grows in proportion to average condition number rather than the largest condition number.

The term involving Lipschitz constant now drops from max to average. In other words we get this:
$$\sup_i \frac{L_i}{\mu} \to \frac{\bar{L}}{\mu}$$

The second (consistency) term can instead potentially get larger, we get
$$\frac{\sigma^2}{\mu^2}\to \frac{\bar{L}\sigma^2}{\inf_i L_i \mu^2}$$

The best trade off depends on details of function -- badly conditioned, but accurate gradients -- sample proportionally to Lipshitz. Well conditioned and noisy gradients, do closer to uniform. She shows that if we sample halways between uniform and Lipshitz, so called "partially biased sampling", both terms are guaranteed to be smaller than for uniform sampling.

Yuriy Nesterov obtained similar bounds for sampling strategy and convergence in his "Efficiency of coordinate descent methods on huge-scale optimization problems". Key difference is that he samples which coordinate to update at each step, instead of sampling examples. Optimal sampling strategy comes down to picking coordinates in linear proportion to their Lipschitz constant, and the convergence rate also drops to the average of per-coordinate Lipschitz constants rather than the worst Lipschtitz constant. Roughly speaking, number of steps till convergence goes down to average eigenvalue of Hessian rather than worst eigenvalue.

Deanna Needell gave background on the Kaczmarz Algorithm which gives alternative way to motivate importance sampling results. In particular, first few slides illustrate why the order matters. She also gives analytic expression to find the best next point to sample for the quadratic case. This requires $O(\text{# of examples})$ search at each iteration. She then shows approximation approach based on dimensionality reduction that takes $O(1)$ time per step.

Ben Recht's made a similar point on impact of choosing better ordering in his presentation



Resources:



Stephen Wright

Started with a nomenclature discussion on how "Stochastic Gradient Descent" methods don't qualify as gradient descent, because SGD steps can be in ascent directions for the global cost function. Instead, they should be referred to as "Stochastic Gradient" methods. Every speaker afterwards corrected themselves on the usage.

Gave overview of parallel Kaczmarz method and then extended analysis to get convergence rate for parallel Kaczmars with "Inconsistent Read" allowed -- situation where the parameter vector gets modified while it's being read.

Resources:




Yann LeCun

Gave background on convolutional neural networks and showed demo of online learning using ImageNet. Basically it was network running network pre-trained on ImageNet, and using nearest neighbor in the embedding induced by activations of the last layer.



Impressively, it seems to do a good job learning to recognize from just a single example.

Also talked about connections between neural network learning and random matrix theory. You can see the connection if you rewrite activations of ReLU neural network as follows

$$\sum_P C(x) \prod_{(i,j) \in P} W_{i,j}$$

The sum is over all paths through active nodes from input layer to output node. Coefficients $C_x$ depend on input data. This is a polynomial with degree equal to the number of layers, and there are results from random matrix theory says that if coefficients $C(x)$ are Gaussian distributed, then local minima are close together in energy, so essentially, finding local minimum is as good as finding global minimum.

Resources:



Francis Bach

Presented results on convergence rates of SGD and how they are affected by lack of strong convexity.

Resources:




Jorge Nocedal

Talked about adaptation of quasi-Newton method to stochastic setting. Convergence of SGD depends on square of condition number, meanwhile Newton's method is independent of condition number, at the cost of step size that that costs $O(\text{dimensions}^2)$

The compromise he proposes is to do BFGS-like method where
1. You use exact Hessian information to compute product of Hessian and step direction
2. You only do it once every 20 iterations

This makes the cost of l-BFGS-like update similar to SGD update.

Resources



Asuman Ozdaglar

Introduced a way to extend ADMM to graph-structured problems without having to choose the order of updates. The setting of problem is summarized below


As you may recall, ADMM works by decoupling components of the loss by having each loss operate on their own copy of the parameters. You alternate between each function minimizing itself locally with their own copy of parameters, and setting values of parameters locally from the functions that have already been minimized.

This steps can be implemented as message passing on a factor graph -- factors here are components of the cost function, whereas nodes are variables that the cost function depends on. Each component function depends on a subset of variable, and each variable is involved ina  subset of component functions.

Implementation of ADMM is similar to Divide and Concur, where a readable overview is given in Yedidia's Message-Passing paper.



One inconvenience of this approach is that it requires establishing an arbitrary order of message updates.

Ozdaglar's idea is to introduce the symmetry by adding extra variables, one for each direction of the constraint variable, and adding an extra constraint that forces them to agree. The update is done in parallel, like parallel BP, followed by an extra step that synchronizes the extra constraint variables.

Resources:



John Duchi

John Ducchi gave a white-board talk on convergence of 0-th order optimization. Happily, the convergence is only a factor of sqrt(dimensions) worse than standard SGD.

Started with succinct derivation of non-asymptotic error of proximal average algorithm, which looks a lot like averaged SGD, after $k$ steps, in terms of errors of gradients. The actual formula has no O-terms and proof is found in notes, but roughly it looks like this

$$E(\text{error}) <= O(\frac{1}{\sqrt{k}})+\frac{1}{k}\sum_{i=1}^{k} E[\|\epsilon_i\|]$$

Error here is in terms of value of the function, which is what we care about in applications (as opposed to distance from true parameter vector). As $k$ increases, the second term vanishes and you get the regular $1/\sqrt{k}$ convergence. If you don't care about constraints, "prox" step can be replaced by an SGD step.

Resources:


Mark Schmidt

Gave an overview of their Stochastic Averaged Gradient algorithm. Full details and many extensions are in their hefty 45 page arxiv paper.

Their motivation is a method to combine fast initial convergence for stochastic method, and fast late-stage convergence of full-gradient methods, while keeping cheap iteration cost of stochastic gradient.



Stochastic Averaged Gradient reaches this goal with a simple modification of stochastic gradient. The idea is that at each gradient step, in addition to the gradient computed for the current data point, you also add up all the gradients computed on previous datapoints. Those gradients may be out of date, but for strongly convex loss with convex component functions, this staleness doesn't hurt.

Schmidt et al advocated sampling datapoints with high curvature more often based on the argument that such gradient might be changing faster, and needs to be evaluated more often. However, the formal justification of this intuition is not avaiable, and instead they fall back on the same analysis as Kaczmarz importance sampling described earlier.

One difference of weighted sampling from standard SGD setting is that examples can be sampled more often without needing to correct for this bias because the weight of each gradient is $1/n$ in SAG regardless of how many times the function is sampled. However, bias correction will come up as an issue in any large scale adaptation of SAG when you can't store all gradients in memory.

Resources:


Lin Xiao

Gave an overview of stochastic variance reduction gradient methods. The idea of variance reduction is to periodically evaluate full gradient, and then use it to adjust future gradient steps. If we evaluated full gradient at previous point $\tilde{x}$, formula for gradient update becomes as follows

$$x_{k+1}=x_k - \nu (\nabla f_{i_k} - \nabla f_{i_k}(\tilde{x})+\nabla F(\tilde{x}))$$

Here $\nabla{F(\tilde{x})}$ is the full gradient evaluated at some previous point $\tilde{x}$, $\nabla{f_{i_k}(x_k)}$ is the gradient evaluated at loss for current example $x_k$.

The idea of variance reduction is illustrated below.



On the left you see what would happen if you applied gradient reduction formula with $\nabla{F(\tilde{x})}$ computed at each step. That reduces to regular gradient descent. If instead we evaluate full gradient once every $k$ iterations, the correction will be based on stale value of gradient and not quite correct, however the mean error is zero so it gives an unbiased estimate of the correction term.

Then they introduce a weighted sampling strategy, where datapoints are sampled proportionally to the condition number of individual loss functions. When number of iterations is much larger than number of examples, weighted sampling strategy drops convergence to $O(C_{\text{avg}}$ steps as opposed to $O(C_\max)$ steps for uniform sampling, C_{\text{avg}} is the average condition number over all component loss functions.

Resources:



James Spall

Gave results on Stochastic Approximation methods. Aproximation can be seen as minimization of distance between solution and ideal solution, so SA methods come down to some form of stochastic optimization. The difference is that the setting is more general - non-convexity, can't compute gradients, possibly discrete problem.

Standard approach to derivative free methods is Finite Difference Stochastic Approximation (FDSA) where to numerically compute gradient, you do $2p$ function evaluations where $p$ is dimensionality.

The idea of Simultaneous Perturbation Stochastic Approximation method (SPSA) is to evaluate gradient along randomly chosen directions, and take step in that directions with step-length proportional to gradient in that direction. This requires two function evaluations instead of $2 p$ for FDSA, and works just as well.

Two summary slides from the SPSA talk:



Here was a graph of numerical simulation of SPSA vs standard approach


He gave a more in-depth overview of the methods in 2012 NIPS talk. It's available as youtube video, but here are screenshots of some intro slides.

Simple SPSA is essentially a first order method, and has the same problems as other first order methods:

  • sensitivity to upscaling of units of $\theta$
  • slow convergence in the final phase

To address these, he introduces Adaptive Stochastic Approximation by the Simultaneous Perturbation Method (ASP) which goes further by numerically estimating the Hessian in addition to the gradient.

The approach to approximating Hessian is similar in spirit to SPSA -- compute gradient in two random directions, and estimate the Hessian numerically from that (formula 2.2 in "Adaptive Stochastic Approximation by the Simultaneous Perturbation Method"). This requires 4 function evaluations.

This estimate is noisy, so use momentum to smooth Hessian estimates.

More recent work (Spall 2009) gives an improved formula for estimating the Hessian numerically using what he calls "feedback term".

Adaptive SPSA methods store Hessian approximation explicitly, like BFGS, so they aren't directly applicable to deep neural nets.

Resources:



Friday, December 06, 2013

Deep Learning Internship at Google, Summer 2014

We have a couple of internship openings for someone to train deep neural nets find extract interesting things in StreetView imagery. The ideal person would come and push the envelope of what's possible with large amount of training data (billions of labeled image examples for some tasks), and large amount of computation power data (essentially unlimited when you parallelize). If you are interested, first apply through links below, and after passing the screen, contact me directly at yaroslavvb@gmail.com (feel free to share this post) For PhDs: https://www.google.com/about/jobs/search/#!t=jo&jid=3481001& For Masters: https://www.google.com/about/jobs/search/#!t=jo&jid=3480001&

Tuesday, October 30, 2012

Summer Intern opening

We are looking for a summer intern to apply Deep Learning techniques to the problem of reading text in the wild. More details here

Tuesday, May 01, 2012

The Average Font

I came across this post post where the author created a font by averaging together all fonts on his machine. I thought it would be cool to do the same for all fonts on the internet -- here's the average of about 375k distinct fonts

It's interesting that shapes are clearly seen even though fonts on the web are quite noisy, here's a random sample of things that make up the A above

Sunday, November 13, 2011

Shapecatcher

Here's a cool tool I stumbled across reading John Cook's blog -- Shape Catcher looks up Unicode value from a drawing of a character.

Apparently it uses Shape Context features.

This motivated me to put together another dataset, unlike notMNIST this focuses on the tail end of Unicode, this is 370k bitmaps representing 29k Unicode values, grouped by Unicode

Wednesday, November 09, 2011

Google1000 dataset

This is a dataset of scans of 1000 public domain books that was released to the public at ICDAR 2007. At the time there was no public serving infrastructure, so few people actually got the 120GB dataset. It has since been hosted on Google Cloud Storage and made available for public download
  • http://commondatastorage.googleapis.com/books/icdar2007/README.txt
  • http://commondatastorage.googleapis.com/books/icdar2007/[filename]
  • [filename] goes from Volume_0000.zip to Volume_0999.zip

To download it, ie, with Python on Linux box
import os
for i in range(1000):
 if count>1: break
 fname = 'Volume_%04d.zip'%(i)
 f = 'curl -L http://commondatastorage.googleapis.com/books/icdar2007/%s -o %s'%(fname,fname)
 os.system(f)
The goal of this dataset is to facilitate research into image post-processing and accurate OCR for scanned books.

Sunday, November 06, 2011

b-matching as improvement of kNN

Below is an illustration of b-matching from (Huang,Jebara AISTATS 2007) paper. You start with a weighted graph and the goal is to connect each v to k u's to minimize total edge cost. If v's represent labelled datapoints, u's unlabeled and weights correspond to distances, this works as a robust version of kNN classifier (k=2 in the picture) because it prevents any datapoint from exhibiting too much influence.
They show that this restriction significantly improves robustness to changes in distribution between training and test set. See Figure 7 in that paper for an example with MNIST digits. This is just one of a series of intriguing papers on matchings that came out of Tony Jebara's lab, there's a nice overview on his page that ties them together.

Tuesday, October 25, 2011

Google Internship in Vision/ML

My group has intern openings for winter and summer. Winter may be too late (but if you really want winter, ping me and I'll find out feasibility). We use OCR for Google Books, frames from YouTube videos, spam images, unreadable PDFs encountered by the crawler, images from Google's StreetView cameras, Android and few other areas. Recognizing individual character candidates is a key step in OCR system. One that machines are not very good at. Even with 0 context, humans are better. This shall not stand!

For example, when I showed the picture below to my Taiwanese coworker he immediately said that these were multiple instance of Chinese "one".



Here are 4 of those images close-up. Classical OCR approaches, have trouble with these characters.



This is a common problem for high-noise domain like camera pictures and digital text rasterized at low resolution. Some results suggest that techniques from Machine Vision can help.

For low-noise domains like Google Books and broken PDF indexing, shortcomings of traditional OCR systems are due to
1) Large number of classes (100k letters in Unicode 6.0)
2) Non-trivial variation within classes
Example of "non-trivial variation"


I found over 100k distinct instances of digital letter 'A' from just one day's crawl worth of documents from the web. Some more examples are here

Chances are that the ideas for human-level classifier are out there. They just haven't been implemented and tested in realistic conditions. We need someone with ML/Vision background to come to Google and implement a great character classifier.

You'd have a large impact if your ideas become part of Tesseract. Through books alone, your code will be run on books from 42 libraries. And since Tesseract is open-source, you'd be contributing to the main OCR effort in the open-source community.

You will get a ton of data, resources and smart people around you. It's a very low bureocracy place. You could run Matlab code on 10k cores if you really wanted, and I know someone who has launched 200k core jobs for a personal project. The infrastructure also makes things easier. Google's MapReduce can sort a petabyte of data (10 trillion strings) with 8000 machines in just 30 mins. Some of the work in our team used features coming from distributed deep belief infrastructure.


In order to get an internship position, you must pass general technical screen that I have no control of. If you are interested in more details, you could contact me directly.

Link to apply is here

Saturday, September 24, 2011

Don't test for exact equality of floating point numbers


A discussion came up on Guido von Rossum's Google Plus post. It comes down to the fact that 2.1 is not exactly represented as a floating point number. Internally it's 2.0999999999999996, and this causes unexpected behavior.

These kinds of issues often come up. The confusion is caused by treating floating point numbers as exact numbers, and expecting calculations with them to produce results meaningful down to the last bit.

People at Wolfram Research has spent a lot of effort trying to get arithmetic right, and here's what a principle kernel developer, Daniel Lichtblau, has to say about the issue of making floating point calculations deterministic:

It is not in any way "solvable", at least not by means accessible to us (which in some sense defines it as "not a problem"). Depends too much on alignment-handling vagaries of MKL libraries, ordering of operations in BLAS, and usage, or not, of extended precision registers. See also IEEE 754: a careful reading may shed light on how different results for the same computation can arise in compliant hardware/software, even on the same machine

In addition to ambiguity in IEEE 754, which gives slight differences between different floating point libraries, there's an issue of the same library giving slightly different results on reruns with same inputs and and same machine, because of run-time optimization by the processor

The solution that Wolfram Inc came up with is to treat the last 7 bits of IEEE doubles as unknown. When testing for equality, those bits are ignored. When printing a number, it chooses representation that gives a nice printout. For instance, Print[2.0999999999999996] will display 2.1

So here's the rule of thumb for IEEE 754 floating point numbers:

When checking for equality of floating point doubles, ignore the last 7 bits of the mantissa.

Thursday, September 08, 2011

notMNIST dataset

I've taken some publicly available fonts and extracted glyphs from them to make a dataset similar to MNIST. There are 10 classes, with letters A-J taken from different fonts. Here are some examples of letter "A" Judging by the examples, one would expect this to be a harder task than MNIST. This seems to be the case -- logistic regression on top of stacked auto-encoder with fine-tuning gets about 89% accuracy whereas same approach gives got 98% on MNIST. Dataset consists of small hand-cleaned part, about 19k instances, and large uncleaned dataset, 500k instances. Two parts have approximately 0.5% and 6.5% label error rate. I got this by looking through glyphs and counting how often my guess of the letter didn't match it's unicode value in the font file. Matlab version of the dataset (.mat file) can be accessed as follows:
load('notMNIST_small.mat')
for i=1:5
    figure('Name',num2str(labels(i))),imshow(images(:,:,i)/255)
end
Zipped version is just a set of png images grouped by class. You can turn zipped version of dataset into Matlab version as follows
tar -xzf notMNIST_large.tar.gz
python matlab_convert.py notMNIST_large notMNIST_large.mat
Approaching 0.5% error rate on notMNIST_small would be very impressive. If you run your algorithm on this dataset, please let me know your results.

Tuesday, August 16, 2011

Making self-contained Unix programs with CDE



In the old days you could statically link your program and run it on another Unix station without worrying about dependencies. Unfortunately static linking no longer works, so you need to make sure that your target platform has the right libraries.

For instance, in order to get Matlab compiled code running on a server, you have to copy over libraries and set environment variables as specified in Matlab's guide, followed by some investigative work to take care of dependencies and version conflicts not covered by Mathworks documentation.

Another example is when if you want to create a self-contained Scipy/Python environment that you could just copy over and use without needing to run configure and make.

For both cases Philip Guo's CDE tool comes helpful. It analyzes your program to find dependencies and makes a package with all the dependencies included. Then it runs the program through a kind of lightweight virtualization, intercepting program calls to trick it into thinking it's running in the original environment.

For instance, here's how you could make a self-contained environment for Python and Scipy:


cd /temp
git clone git://github.com/pgbovine/CDE.git
cd CDE
make
cd ..
CDE/cde python -c "from scipy import *; print zeros(15)"
tar -cf package.tar cde-package


This makes a 26 MB file that includes that all files that were read during execution of that command.
Now you can move it to another machine that doesn't have scipy, prepare the environment and try it out as follows

tar -xf package.tar
cd cde-package/cde-root/temp
../../cde-exec python -c "from scipy import *; print ones(15)"


This will work even if machine doesn't have Python installed, or has the wrong version of shared libraries installed, because cde-exec is reproducing the environment of the original machine. It works for anything that doesn't need files other than the ones accessed during package creation.

For instance, you could start an interactive Python session and run some SciPy examples like this


cde cde-package/cde-root
../cde-exec python
>>> from scipy import *
>>> ....


You could give your containerized program access to host system by creating symlink to the outside in cde-root

Wednesday, July 13, 2011

Google+ ML people

Google+ seems to have a fair number of Machine Learning people, I was able to track down 50 people I've met at conferences by starting at Andrew McCallum's circles. If you add me on Google Circles I'll assume you came from this blog and add you to my "Machine Learning" circle

Saturday, June 25, 2011

Embracing non-determinism



Computers are supposed to be deterministic. This is often the case for single processor machines. However, as you scale up, guaranteeing determinism becomes increasingly expensive.

Even on single processor machines you are facing non-determinism on semi-regular basis. Here are some examples


  • Bugs + poor OS memory control that allows programs to read uninitialized memory. A recent example for me was when I used FontForge to process a large set of files, and had it crash on a different set every time I ran it.
  • /dev/random gives "truly random" numbers, however, even if the program uses regular rand() seeded by time, it's essentially non-deterministic since so many factors affect the time of seed()
  • Floating point operations on modern architecture are non-deterministic because of run-time optimization -- depending on the pattern of memory allocation, processor will rearrange the order of your arithmetic operations, producing slightly different results on reruns
  • Soft-errors in circuits due to radiation, about one error per day, according to stats here
  • Some CPU units are bad and produce incorrect results. I don't know exact stats on this, but the guy who did the Petasort experiment told me that it was one of the issues they had to deal with.
.

Those modes of failure may be rare on one computer, but once you scale your computation up to many cores, it becomes a fact of life.

In a distributed application like sorting a petabyte of data, you should expect about 1 hardrive failure, 100 irrecoverable disk read errors, and a couple of undetected memory errors if you use error correcting RAM (more if you use regular RAM).

You can make your computation deterministic by adding checksums at each stage and recomputing the parts that fail. However, this is expensive, and becomes disporportionately more expensive as you scale up. When the Czajkowski et al sorted 100 trillion records deterministically, most of the time was spent on error recovery.

I've been running an aggregation that is modest in comparison, going over over about 100 TB of data and getting slightly different results each time. Theoretically I could add recovery stages that get rid of non-determinism, but at a cost that is not justified in my case.

Large scale analysis systems like Dremel are configured to produce approximate results by default, otherwise, the long tail of packet arrival times means that you'll spent most of the time waiting for a few "stragglers"

Given the increasing cost of determinism it makes sense to think of it in terms of cost-benefit analysis and trade off the benefit of reproducible results against the cost of 100% error recovery.

A related idea come up in Vikash Mansinghka presentation at NIPS 2010 workshop on monte carlo methods: Real world decision problems can be formulated as inference and solved with MCMC sampling, so it doesn't make sense to spend so much effort ensuring determinism only to destroy it with /dev/random -- you could achieve greater efficiency by using analogue circuits to start with. His company, Navia, is working in this direction.

There's some more discussion on determinism on Daniel Lemire's blog

Wednesday, June 22, 2011

Machine Learning opportunities at Google

Google is hiring and there are lots of opportunities to do Machine Learning-related work here. Kevin Murphy is applying Bayesian methods to video recommendation, Andrew Ng is working on a neural network that can run on millions of cores, and that's just the tip of the iceberg that I've discovered working here for last 3 months.

There is machine learning work in both "researcher" and "engineer" positions, and the focus on applied research makes the distinction somewhat blurry.

Saturday, April 30, 2011

Neural Networks making a come-back?

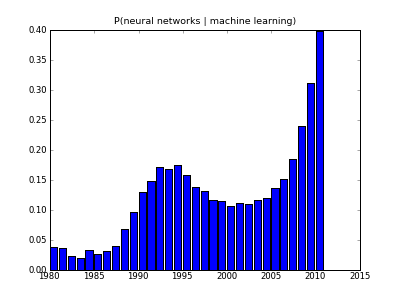

Five years ago I ran some queries on Google Scholar to see trends on the number of papers that mention particular phrase. The number of hits for each year was divided by the number of hits for "machine learning". Back then it looked like NN's started gaining in popularity with invention of back-propagation in 1980's, peaked in 1993 and went downhill from there.



Since then, there's been several major NN developments, involving deep learning and probabilistically founded versions so I decided to update the trend. I couldn't find a copy of scholar scraper script anymore, luckily Konstantin Tretjakov has maintained a working version and reran the query for me.



It looks like downward trend in 2000's was misleading because not all papers from that period have made it into index yet, and the actual recent trend is exponential growth!

One example of this "third wave" of Neural Network research is unsupervised feature learning. Here's what you get if you train a sparse auto-encoder on some natural scene images

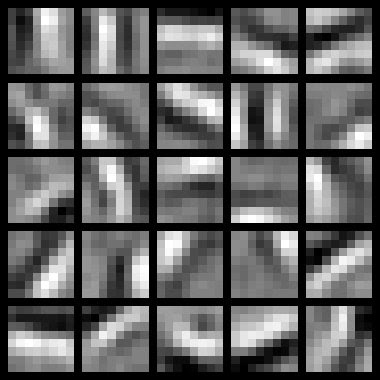

What you get is pretty much a set of Gabor filters, but the cool thing is that you get them from your neural network rather than image processing expert

Friday, April 29, 2011

Another ML blog

I just noticed that Justin Domke has a blog --

He's one of the strongest researchers in the field of graphical models. I first came across his dissertation when looking for a way to improve loopy-Belief Propagation based training. His thesis gives one such idea -- instead of maximizing the fit of an intractable model, and using BP as intermediate step, maximize the fit of BP marginals directly. This makes sense since approximate (BP-based) marginals are what you ultimately use.

If you run BP for k steps, then likelihood of the BP-approximated model is tractable to minimize -- calculation of gradient is very similar to k steps of loopy BP. I derived formulas for gradient of "BP-approximated likelihood" in equations 17-21 in this note. It looks a bit complicated in my notation, but derivation is basically an application of chain rule to BP-marginal, which is a composition of k-steps of BP update formula.

Sunday, March 13, 2011

Going to Google

I've accepted an offer from Google and will be joining their Tesseract team next week.

I first got interested in OCR when I faced a project at my previous job involving OCR of outdoor scenes and found it to be a very complex task, yet highly rewarding because it's easy to make incremental progress and see your learners working.

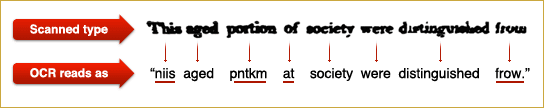

Current state-of-the-art OCR tools are not at human level of reading, partially because humans are able to take context into account. For instance, sentence below is unreadable if you don't assume English language.


Also, I'm excited to work on an open-source project. I'd like to live in a world where the best technologies are open-source and free to everyone.

Saturday, March 05, 2011

Linear Programming for Maximum Independent Set

Maximum independent set, or "maximum stable" set is one of classical NP-complete problems described in Richard Karp's 1972 paper "Reducibility Among Combinatorial Problems". Other NP-complete problems often have a simple reduction to it, for instance, p.3 of Tony Jebara's "MAP Estimation, Message Passing, and Perfect Graphs" shows how MAP inference in an arbitrary MRF reduces to Maximum Weight Independent Set.

The problem asks to find the largest set of vertices in a graph, such that no two vertices are adjacent.

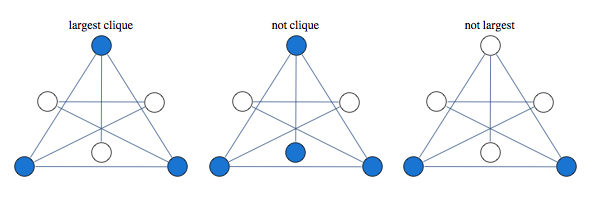

Finding largest independent set is equivalent to finding largest clique in graph's complement



A classical approach to solving this kind of problem is based on linear relaxation.

Take a variable for every vertex of the graph, let it be 1 if vertex is occupied and 0 if it is not occupied. We encode independence constraint by requiring that adjacent variables add up to 1. So we can consider the following graph and corresponding integer programming formulation:



$$\max x_1 + x_2 + x_3 + x_4 $$

such that
$$
\begin{array}{c}
x_1+x_2 \le 1 \\\\
x_2+x_3 \le 1 \\\\
x_3+x_4 \le 1 \\\\
x_4+x_1 \le 1 \\\\
x_i\ge 0 \ \ \forall i \\\\
x_i \in \text{Integers}\ \forall i
\end{array}
$$

Solving this integer linear integer program is equivalent to the original problem of maximum independent set, with 1 value indicating that node is in the set. To get a tractable LP programme we drop the last constraint.

If we solve LP without integer constraints and get integer valued result, the result is guaranteed to be correct. In this case we say that LP is tight, or LP is integral.

Curiously, solution of this kind of LP is guaranteed to take only values 0,1 and $\frac{1}{2}$. This is known as "half-integrality". Integer valued variables are guaranteed to be correct, and we need to use some other method to determine assignments to half-integer variables.

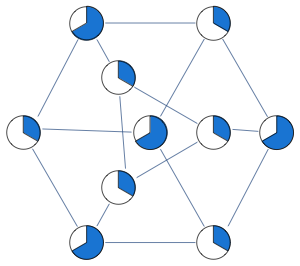

For instance below is a graph for which first three variables get 1/2 in the solution of the LP, while the rest of the vertices get integral values which are guaranteed to be correct

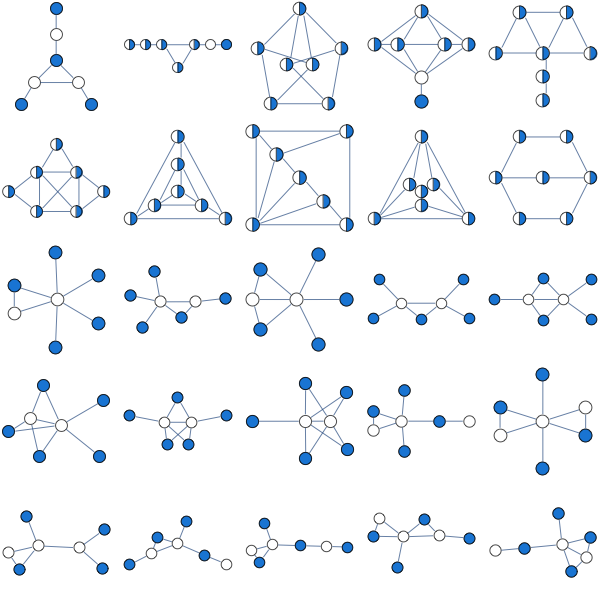

Here's what this LP approach gives us for a sampling of graphs



A natural question to ask is when this approach works. Its guaranteed to work for bipartite graphs, but it also seems to work for many non-bipartite graphs. None of the graphs above are bipartite.

Since independent set only allows one vertex per clique, we can improve our LP by saying that sum of variables over each clique has to below 1.

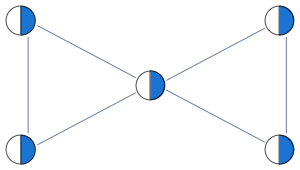

Consider the following graph that our original LP has a problem with:



Instead of having edge constraints, we formulate our LP with clique constraints as follows:

$$x_1+x_2+x_3\le 1$$
$$x_3+x_4+x_5\le 1$$

With these constraints, LP solver is able to find the integral solution



In this formulation, solution of LP is no longer half-integral. For the graph below we get a mixture of 1/3 and 2/3 in the solution.



Optimum of this LP is known as the "fractional chromatic number" and it is an upper bound both on the largest clique size and the largest independent set size. For the graph above, largest clique and independent set have sizes 9/3 and 12/3, whereas fractional chromatic number is 14/3.

This relaxation is tighter than previous, here are some graphs that previous LP relaxation had a problem with.



This LP is guaranteed to work for perfect graphs which is a larger class of graphs than bipartite graphs. Out of 853 connected graphs over 7 vertices, 44 are bipartite while 724 are perfect.

You can improve this LP further by adding more constraints. A form of LP constraints that generalizes previous two approaches is

$$\sum_{i\in C} x_i\le \alpha(C)$$

Where $C$ is some subgraph and $\alpha(C)$ is its independence number.

You extend previous relaxation by considering subgraphs other than cliques.
Lovasz describes the following constraint classes (p.13 of "Semidefinite programs and combinatorial optimization")

1. Odd hole constraints
2. Odd anti-hole constraints
3. Alpha-critical graph constraints.

Note that adding constraints for all maximal cliques can produce a LP with exponential number of constraints.

Notebook
Packages

Thursday, March 03, 2011

Perils of floating point arithmetic

A recent discussion on stackoverflow brought up the issue of results of floating point arithmetic being non-reproducible

A reader asked what one could do to guarantee that result of floating point computation is always the same, and Daniel Lichtblau, a veteran developer at the kernel group of WRI replied that "it is impossible with current hardware and software"

One problem is that IEEE 754 standard is ambiguous, and different implementations of it give slightly different results. See page 250 of What Every Computer Scientist Should Know About Floating Point Arithmetic for specific examples. This means that compiling code on a different system can produce slightly different results.

Another issue is that even when you run the same computation on the same system, results can be slightly different on reruns. This has to do with how low-level optimization is scheduled.

This means that if you want your results to be reproducible, you should avoid things like testing floating point numbers for equality. John D Cook gives some more advice in Five Tips for Floating Point Programming

Monday, February 21, 2011

How to patent an algorithm in the US

Today I got Google Alert today on the following pending patent -- Belief Propagation for Generalized Matching. I like to stay up on Belief Propagation literature, so I took a closer look. The PDF linked gives a fairly detailed explanation of belief propagation for solving matching problems, including pseudocode which is very detailed, looking like an excerpt of a C program. Appendix A seems to be an expanded version of a paper which appeared in NIPS 2008 workshop

A pecularity of the US patent system is that patents on algorithms are not allowed, yet algorithms are frequently patented. A few years ago when I blogged on the issue of patents in Machine Learning, I didn't know the specifics, but now, having gone through the process, I know a bit more.

When filing an algorithm patent, patent lawyer will tell you to remove every instance of the word "algorithm" and replace it with some other word. This seems to be necessary for getting the patent through.

So, in the patent above, belief propagation algorithm is referred to as "belief propagation system". In the whole application, word "system" occurs 114 times, whereas "algorithm" occurs 1 time, in reference to a competing approach.

Another thing the patent lawyer will probably ask for is lots and lots of diagrams. I'm guessing that diagrams serve as further evidence that your algorithm is a "system" and not merely an algorithm. There are only so many useful diagrams you can have, so at some point you may find yourself pulling diagrams from thin ar and thinking "why am I doing this?" (but then remembering that it's because of the bonus). In the industry, a common figure seems to be $5000 for a patent that goes through. If a company doesn't have bonus structure, they may use other means to pressure employees into patent process. (note, patent above was filed through a university)

As a result, these kinds of patents end up with vacuous diagrams.

For instance, In the patent above, there are 17 figures, and a few of them don't seem to convey any useful information. The one below is illustrating the "plurality of belief propagation processors connected to a bus"


And this one is one is to illustrate belief propagation processors connected to a network


Finally when I saw the following diagram, I first thought it was there to illustrate BP update formula, which involves adding and multiplying numbers



But it's not even tenuously connected to the rest of the patent. 604 is supposed to be "computer readable media", 606 is a "link that couples media to the network", 608 is the "network" for aforementioned "link" and "media". 616 and 618 are not referenced.

This doesn't actually matter because nobody really reads the patent anyway. The most important part of getting the patent through is having a patent lawyer on the case who can frame it in the right format and handle communication with the patent office. The process for regular (non-expedited) patents can take five years and the total cost can exceed $50,000.

As to why an organization would spend so much time and money on a patent that might not even be enforceable by virtue of being an algorithm patent -- patents have intrinsic value. Once patent clears the patent office, a patent is an asset which can be sold or traded and as a result increases company worth. You can sell rights to pending patents before they are granted which makes the actual content of the patent even less important

Sunday, February 20, 2011

Generalized Distributive Law

With regular distributive law you can do things like

$$\sum_{x_1,x_2,x_3} \exp(x_1 + x_2 + x_3)=\sum_{x_1} \exp x_1 \sum_{x_2} \exp x_2 \sum_{x_3} \exp x_3$$

This breaks the original large sum into 3 small sums which can be computed independently.

A more realistic scenario requires factorization into overlapping parts. For instance take the following

$$\sum_{x1,x2,x3,x_4,x_5} \exp(x_1 x_2 + x_2 x_3 + x_3 x_4+x_4 x_5)$$

You can't use directly apply distributive law here. Naive evaluation of the sum is exponential in the number of variables, however this problem can be solved in time linear in the number of variables.

Consider the following factorization
$$\sum_{x1,x2} \exp x_1 x_2 \left( \sum_{x_3} \exp x_2 x_3 \left( \sum_{x_4} \exp x_3 x_4 \left( \sum_{x_5} \exp x_4 x_5 \right) \right) \right) $$

Now note that when computing inner sums, naive approach results in same sum being recomputed many times. Save those shared pieces and you get an algorithm that's quadratic in number of variable values and linear in number of variables

Viterbi and Forward-Backward are specific names of this kind of dynamic programming for chain structured sums as above.

To consider tree-structured sum, take a problem of counting independent sets in a tree-structured graph. In this case we can use the following factorization




This is the first step of the recursion and you can repeat it until your pieces have tractable size.

Now for a general case of non-tree-structured graph, consider the sum below

$$\sum_{x1,x2,x3,x_4,x_5} \exp( x_1 x_2 + x_2 x_3 + x_3 x_4+x_4 x_5 + x_5 x_1 )$$

Here, variables form a loop, so regular tree recursion like Viterbi does not apply. However, this sum can be found efficiently, linear in the number of variables, and cubically in the number of variable values. I have more in depth explanation of decomposing problems like above in an answer on cstheory site but the basic idea is similar to the approach with independent sets -- fix some variables and recurse on subparts.

This kind of general factorization has been re-invented many times and is known as Generalized Distributive Law, tree-decomposition, junction tree, clique tree, partial k-tree, and probably a few other names.


Notebook

Tuesday, February 15, 2011

Cluster decomposition and variational counting

Suppose we want to count the number of independent sets in a graph below.



There are 9 independent sets.


Because the graphs are disjoint we could simplify the task by counting graphs in each connected component separately and multiplying the result



Variational approach is one way of extending this decomposition idea to connected graphs.

Consider the problem of counting independent sets in the following graph.


There are 7 independent sets. Let $x_i=1$ indicate that node $i$ is occupied, and $P(x_1,x_2,x_3,x_4)$ be a uniform distribution over independent sets, meaning it is either 1/7 or 0 depending whether $x_1,x_2,x_3,x_4$ forms an independent set

Entropy of uniform distribution over $n$ independent sets distribution is $H=-\log(1/n)$, hence $n=\exp H$, so to find the number of independent sets just find the entropy of distribution $P$ and exponentiate it.

We can represent P as follows

$$P(x_1,x_2,x_3,x_4)=\frac{P_a(x_1,x_2,x_3)P_b(x_1,x_3,x_4)}{P_c(x_1,x_3)}$$

Entropy of P similarly factorizes

$$H=H_a + H_b - H_c$$

Once you have $P_A$, $P_B$ and $P_C$ representing our local distributions of our factorization, we can forget the original graph and compute the number of independent sets from entropies of these factors

To find factorization of $P$ into $P_a,P_b$, and $P_c$ minimize the following objective

$$KL(\frac{P_a P_b}{P_c},P)$$

This is KL-divergence between our factorized representation and original representation. Message passing schemes like cluster belief propagation can be derived as one approach of solving this minimization problem. In this case, cluster belief propagation takes 2 iterations to find the minimum of this objective. Note that the particular form of distance is important. We could reverse the order and instead minimize $KL(P,P_a P_b/P_c)$ and while this makes sense from approximation stand-point, minimizing reversed form of KL-divergence is generally intractable.


This decomposition is sufficiently rich that we can model P exactly using proper choice of $P_a,P_b$ and $P_c$, so the minimum of our objective is 0, and our entropy decomposition is exact.

Now, the number of independent sets using decomposition above factorizes as
$$n=\exp H=\frac{\exp H_a \exp H_b}{\exp H_c} = \frac{\left(\frac{7}{2^{4/7}}\right)^2}{\frac{7}{2\ 2^{1/7}}} = \frac{4.75 \times 4.75}{3.17}=7$$

Our decomposition can be schematically represented as the following cluster graph



We have two regions and we can think of our decomposition as counting number of independent sets in each region, then dividing by number of independent sets in the vertex set shared by pair of connected regions. Note that region A gets "4.75 independent sets" so this is not as intuitive as decomposition into connected components


Here's another example of graph and its decomposition.





Using 123 to refer to $P(x_1,x_2,x_3)$ the formula representing this decomposition is as follows

$$\frac{124\times 236\times 2456 \times 4568 \times 478\times 489}{24\times 26 \times 456 \times 48 \times 68}$$

There are 63 independent sets in this graph, and using decomposition above the count decomposes as follows:

$$63=\frac{\left(\frac{21\ 3^{5/7}}{2\ 2^{19/21} 5^{25/63}}\right)^2 \left(\frac{3\ 21^{1/3}}{2^{16/21} 5^{5/63}}\right)^4}{\frac{21\ 3^{3/7}}{2\ 2^{1/7} 5^{50/63}} \left(\frac{3\ 21^{1/3}}{2\ 2^{3/7} 5^{5/63}}\right)^4}$$


Finding efficient decomposition that models distribution exactly requires that graph has small tree-width. This is not the case for many graphs, such as large square grids, but we can apply the same procedure to get cheap inexact decomposition.

Consider the following inexact decomposition of our 3x3 grid



Corresponding decomposition has 4 clusters and 4 separators, and the following factorization formula

$$\frac{1245\times 2356 \times 4578 \times 5689}{25\times 45 \times 56 \times 58}$$

We can use minimization objective as before to find the parameters of this factorization. Since original distribution can not be exactly represented in this factorization, result will be approximate, unlike previous two example.

Using message-passing to solve the variational problem takes about 20 iterations to converge, to an estimate of 46.97 independent sets




To try various decompositions yourself, unzip the archive and look at usage examples in indBethe3-test.nb

Notebooks
